H15 Sending Card and Video Processor
₨ 0
- Resolution: Up to 130 million pixels
- Input: 30 HDMI/ DVI SLOT
- Output: 5 Ethernet Port Slot
- Control: Web-based UI (cross-platform), TCP/IP, USB, Ark App
Features

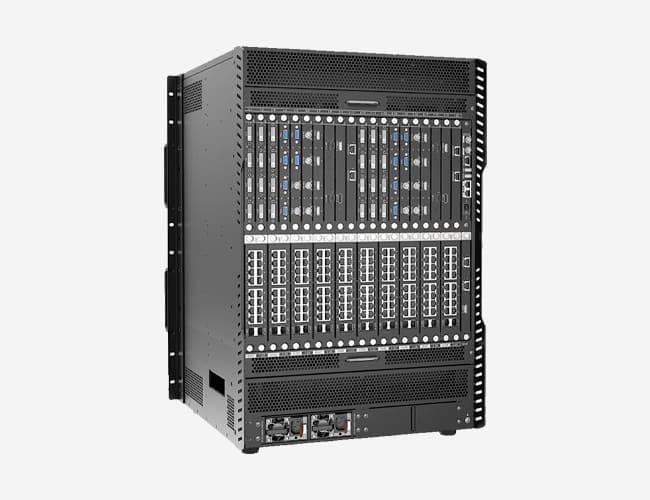

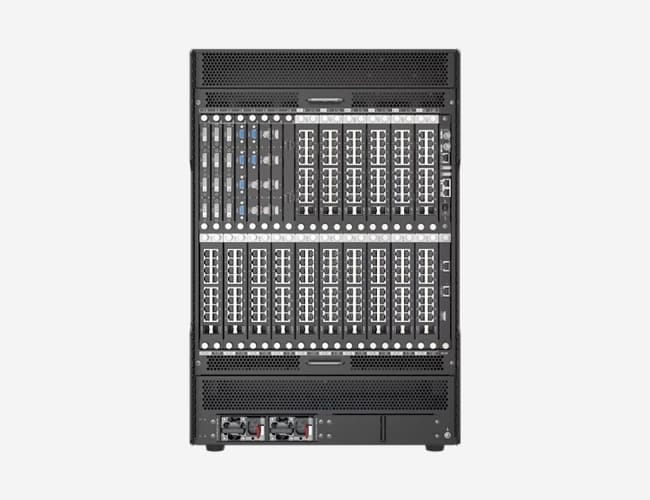

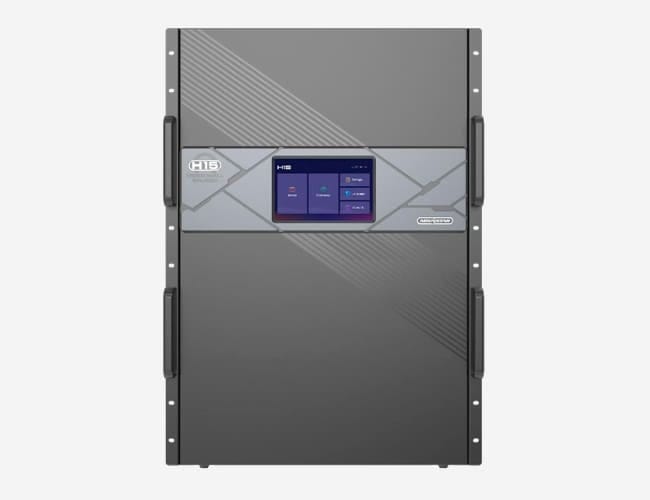

The H15 BY NovaStar is the latest-generation modular video wall splicer. It is designed for ultra-fine pitch LED displays. Built on a powerful FPGA-based hardware system, it delivers real-time video processing and control for mission-critical applications like command centers, studios, exhibitions, and enterprise-level deployments.
- Modular plug-in architecture with hot-swappable input/output cards
- Supports two 4K sending card types:
- H_20xRJ45: Up to 13 million pixels
- H_16xRJ45 + 2x Fiber (OPT): Up to 10.4 million pixels
- Flexible output configurations per slot:
- 4× 2K×1K@60Hz
- 2× 4K×1K@60Hz
- 1× 4K×2K@60Hz
- Seamless switching with frame synchronization (no tearing or lag)
- Multi-screen & multi-layer control:
- Up to 16× 2K, 8× DL, or 4× 4K layers per card
- Enhanced version supports 10× 2K, 5× DL, or 2× 4K layers
- Cross-connector output without reducing layers
- Supports up to 2,000 presets with smooth transitions and fade effects
- Scrolling text, BKG image (up to 15K x 8K), OSD transparency, input cropping & renaming
- Built-in content scheduler & playlist
- Real-time Web UI (Windows, Mac, iOS, Android, Linux – no installation required)
- Input monitoring & firmware updates directly via browser
- Connects and displays up to 100 IP camera feeds simultaneously
- HDR10, HLG, and 10-bit video processing for rich, vibrant visuals
- Decimal frame rates and XR control
- 3D playback (via EMT200 emitter)
- Eye saver mode, LCD bezel compensation, and smart color calibration
- Redundant power supply and signal backup across devices and cards
- Designed for energy, military, transportation, broadcast, education & rental markets
